Concrete Drain Tile Specifications
| Tile Size | Standard Wall Thickness |
Heavy Duty Thickness |
Available Lengths |
Flow Rate at 1.25"/100' in Gallons/Minute |
Acres Drained at .5" Drainage Coeffiecent |
| 5" | .5" | 1' | 53 | 5 | |
| 6" | .6" | 1' | 87 | 9 | |
| 8" | .8" | 1' | 186 | 19 | |
| 10" | 1.0" | 1.25" | 1', 2.5' | 338 | 35 |
| 12" | 1.2" | 1.5" | 1', 2', 2.5' | 549 | 58 |
| 14" | 1.4" | 2" | 2', 2.5' | 829 | 88 |
| 15" | 1.5" | 2.1" | 2.5' | 998 | 105 |
| 16" | 1.6" | 2.1" | 2.5' | 1183 | 126 |
| 18" | 1.8" | 2.3" | 2.5' | 1619 | 172 |
| 20" | 2.0" | 2.5" | 2.5' | 2145 | 228 |
| 22" | 2.2" | 2.7" | 2.5', 4' | 2765 | 293 |
| 24" | 2.4" | 2.9" | 2.5', 4' | 3488 | 370 |
| 26" | 2.6" | 3.1" | 2.5', 4' | 4317 | 458 |
| 28" | 2.8" | 3.55" | 4' | 5261 | 558 |
| 30" | 3.0" | 3.75" | 4' | 6323 | 670 |
| 32" | 3.2" | 3.95" | 4' | 7517 | 796 |
| 36" | 3.6" | 4.35" | 6' | 10322 | 1090 |
| 42" | 4.2" | 4.95" | 6' | 15483 | 1645 |

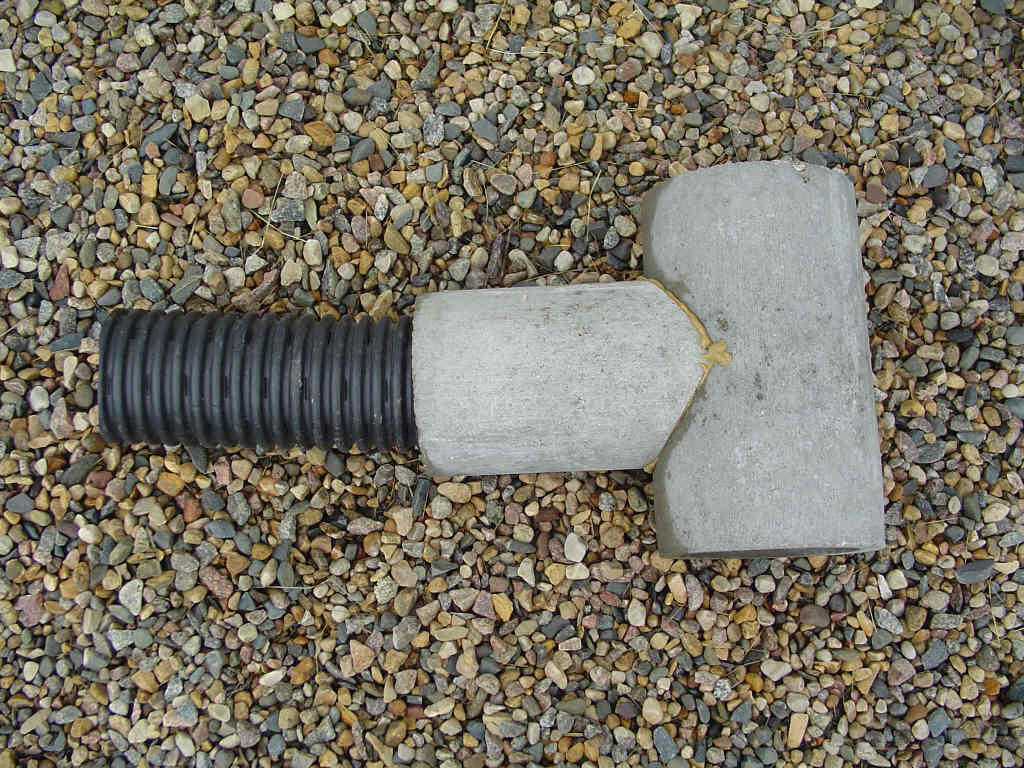

Concrete Tee's
8"x6"
8"x5"
6"x6"
6"x5"
5"x5"
Steel Culverts available in 14' and 20' lengths and special order diameter and length
6"
8"
10"
12"
15"
18"
24"
